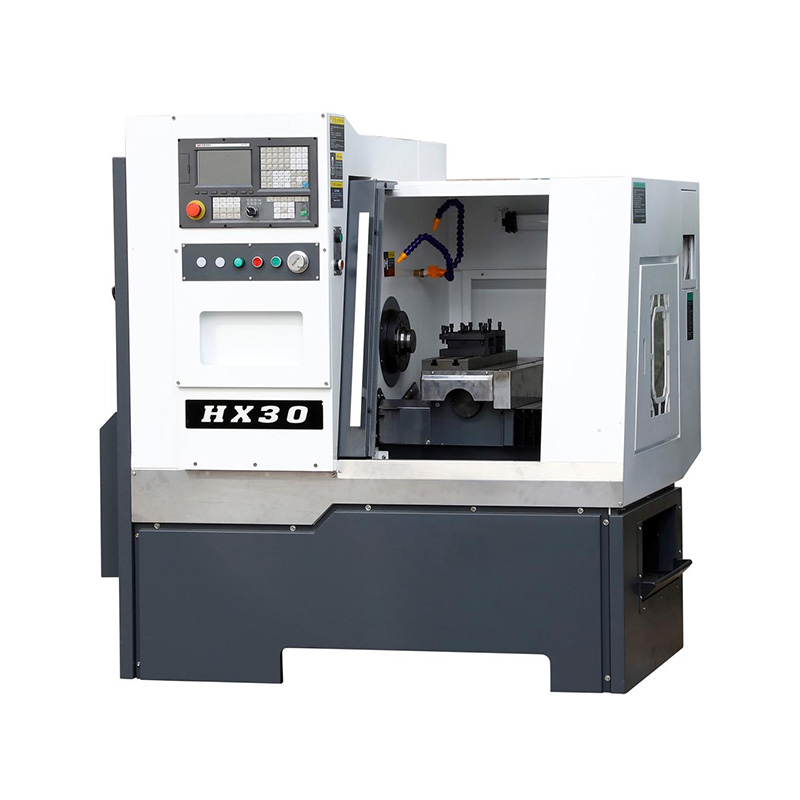

HX30 Mandrel Bar Feeder Cheap CNC Lathe

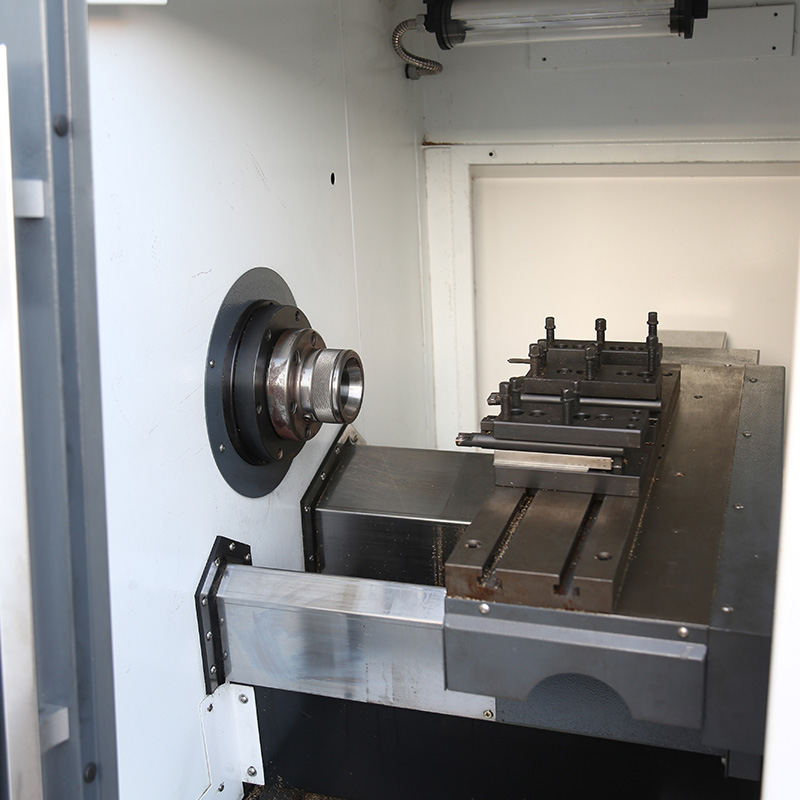

A notable feature of the HX30 Mandrel Bar Feeder Cheap CNC Lathe is its efficient and reliable mandrel bar feeder. The mandrel serves as a support for the workpiece during the machining process, ensuring stability and accuracy. This accessory provides seamless material feeding, reducing downtime and improving productivity.

The mandrel for lathe is designed to withstand the rigorous demands of industrial machining. With its sturdy construction and precise engineering, it guarantees consistent and repeatable performance. The mandrel is easily adjustable, allowing for quick adaptation to different workpiece sizes and shapes.

In addition, the HX30 Mandrel Bar Feeder Cheap CNC Lathe offers a user-friendly interface, making it easy for operators to program and control the machining process. The machine tool is compatible with various CNC systems, providing flexibility and versatility for different machining needs.

With its affordable price, the HX30 Mandrel Bar Feeder Cheap CNC Lathe offers exceptional value without compromising on quality and performance. It is an choice for small to medium-sized workshops, allowing businesses to achieve high-precision machining results while cost-effectiveness.

Invest in the HX30 Mandrel Bar Feeder Cheap CNC Lathe to elevate your machining capabilities and boost your productivity. Experience the precision, reliability, and affordability that our machine tool products are known for. Choose quality, choose our CNC lathe solutions, and stay ahead in the competitive manufacturing industry.

PREV：JX32-300 Mini Economical CNC Lathe for Turning Metal Products
NEXT：No next article

Get A Quote

Specification
Contact Us

1. Z-axis Guide Rail Horizontal Installation: With the horizontal installation of the guide rail, the weight and cutting force are evenly distributed among the four sliders, reducing the wear of the slide blocks and prolonging the service life of the guide rail.

2. High Flat Bottom Guide Rail Slant Bed: The high flat bottom guide rail slant bed ensures consistent performance throughout the machining, assembly, and usage processes, ensuring the precision of the machine tool.

3. Premium Castings: The main castings are made of high-quality Meehanite advanced cast iron using resin sand casting process. Through advanced finite element analysis technology, the structure is designed to be reasonable and the layout is optimized. The castings are further treated with secondary aging to ensure long-term machining stability of the machine tool.

4. Precision Ball Screw Transmission: Both the X-axis and Z-axis ball screws adopt precision ball screws, along with scientific pre-tension assembly process, resulting in minimal thermal deformation and high transmission accuracy.

5. Support and Locking System: The support of the ball screws adopts precision bearings from well-known brands, and the locking nut adopts high-precision locking nut, improving the support and locking accuracy of the ball screws, further enhancing the machining precision of the machine tool.

6. Automatic Centralized Lubrication System: The CNC lathe is equipped with an automatic centralized lubrication system that lubricates the moving parts such as ball screws and guide rails through preset lubrication intervals and durations, ensuring the normal operational accuracy and service life of the machine tool.

Parameter items
Processing capacity	Maximum rotating diameter of bed	mm	320
	Maximum turning radius	mm	86
	Max travel of X/Z axis	mm	280/300
	X\Z axis servo motor power	Nm	45022
	X\Z axis fast feed speed	m/min	24/24
Machine tool accuracy	Spindle runout	mm	0.005
	Bidirectional positioning accuracy	mm	0.015
	Repeated positioning accuracy	mm	0.005
Spindle parameter	Spindle nose taper		A2-5
	Maximum pass bar diameter	mm	35
	Main motor power	kw	4
	Spindle speed range	rpm	3500
Other parameters	Cutting tool size	mm	20*20
	Cooling pump power	w	120
	Oil pump pressure range	mpa	20-40
	External power supply	v/ph/hz	380/3/50
	Machine size	mm	160012501680
	Net weight of machine	kg	1000
