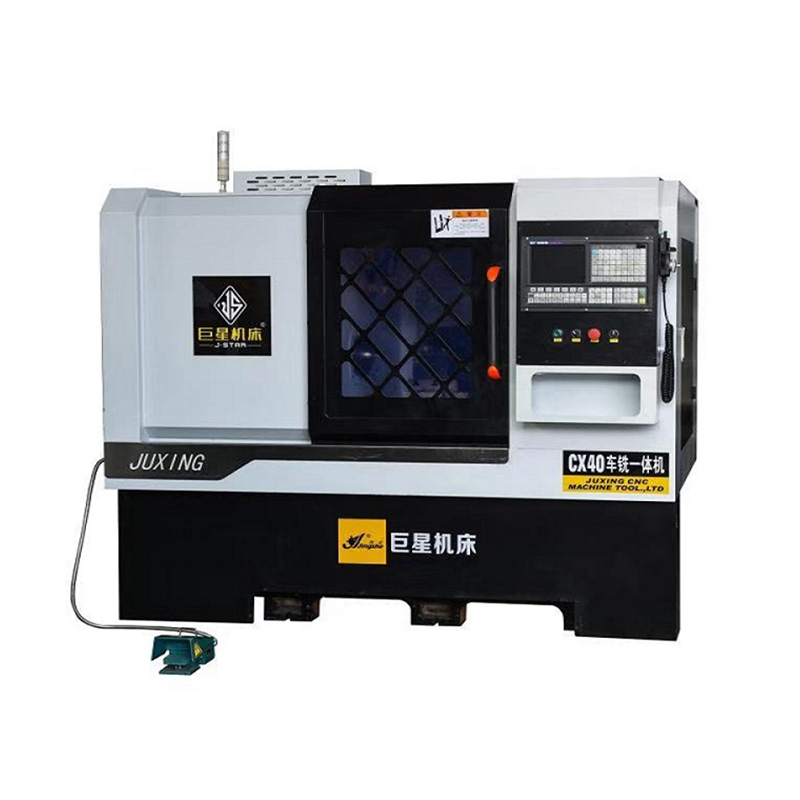

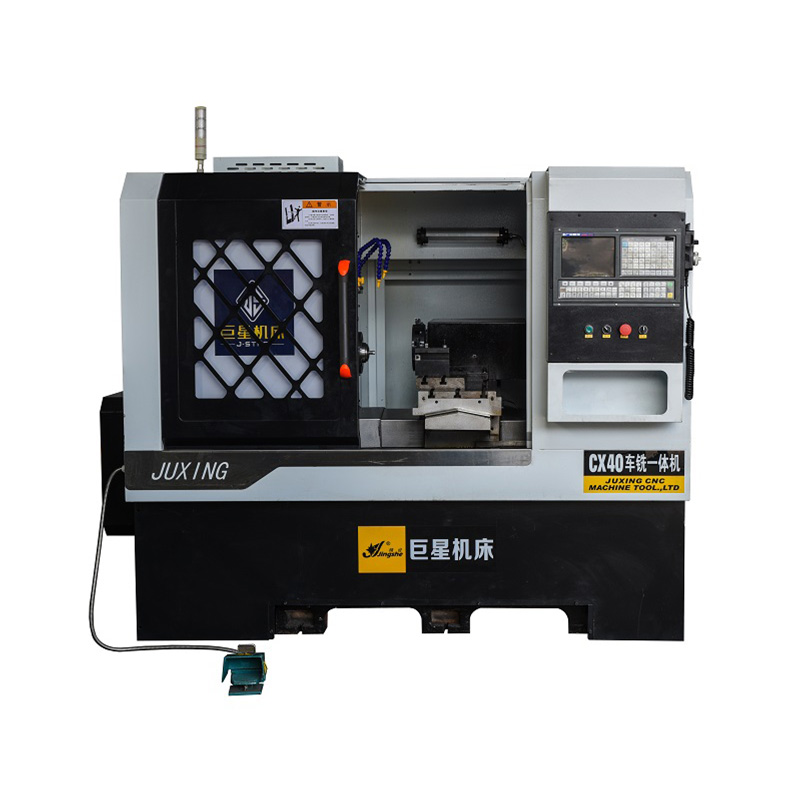

The CX40 High Precision Linear Track Horizontal CNC Lathe Machine is designed to provide exceptional performance and versatility for precision machining operations. With advanced features and cutting-edge technology, this machine is capable of delivering high-quality results for a wide range of applications.
One of the key highlights of the CX40 is its ability to complete multiple processes in one setup. Whether it is turning, milling, threading, or grooving, this machine can handle them all in a single operation, eliminating the need for secondary setups. This not only improves productivity but also ensures high concentricity and accuracy of the finished product.
In addition to its multi-process capabilities, the CX40 is also capable of machining various polygonal products. It can effortlessly mill two, four, six-sided products, as well as process tapered hexagons, intermediate-milled hexagons, chamfered and radiused products, and other polygonal variations. This level of versatility makes it an ideal choice for manufacturing with diverse product requirements.
The CX40 is designed to cater to different machining needs, offering high-speed turning for efficient removal and low-speed operations for complex polygonal machining. With its advanced control system and precision components, this machine provides performance in terms of speed, accuracy, and surface finish.
To ensure stability and rigidity, the CX40 adopts a bed-bed foot integrated structure along with imported linear guides. This design improves the machine's resistance to vibration and enhances its overall rigidity, resulting in enhanced machining precision and reduced tool wear.
Mechanical automation is a key feature of the CX40 series, as it is equipped with a hydraulic clamping system. This not only improves operational efficiency but also ensures consistent and reliable clamping of workpieces. The hydraulic clamping system offers easy setup and provides a strong grip on the workpiece, allowing for precise machining and minimizing the risk of material slippage.
The main casting components of the CX40 are made of high-quality cast iron using advanced foundry techniques. These components are subjected to rigorous finite element analysis and undergo secondary aging treatment, ensuring long-term machining stability and high structural integrity.
Both the X and Z-axis are equipped with precision ball screws, which are assembled using a scientific pre-stressing process. This minimizes thermal deformation and ensures high transmission accuracy, resulting in machining precision. The support bearings for the ball screws are sourced from reputable brands, further enhancing the stability and clamping accuracy of the screws, thereby improving overall machining accuracy.
To maintain the machine's performance and extend its service life, the CX40 features an automatic centralized lubrication system. This system ensures proper lubrication of moving components such as ball screws and guides by setting intervals and duration for oil injection. With regular lubrication, the machine operates with precision and reliability over an extended period.
The CX40 High Precision Linear Track Horizontal CNC Lathe Machine is a reliable and efficient machining solution that meets the demands of various industries. With its multi-process capabilities, precision components, and advanced features, this machine delivers exceptional performance that ensures high accuracy, productivity, and cost-effectiveness. Whether it is standard turning operations or complex polygonal machining, the CX40 is the ideal choice for achieving high-quality results.
