Exploring the Functions of CNC Polygon Lathes in Precision Manufacturing

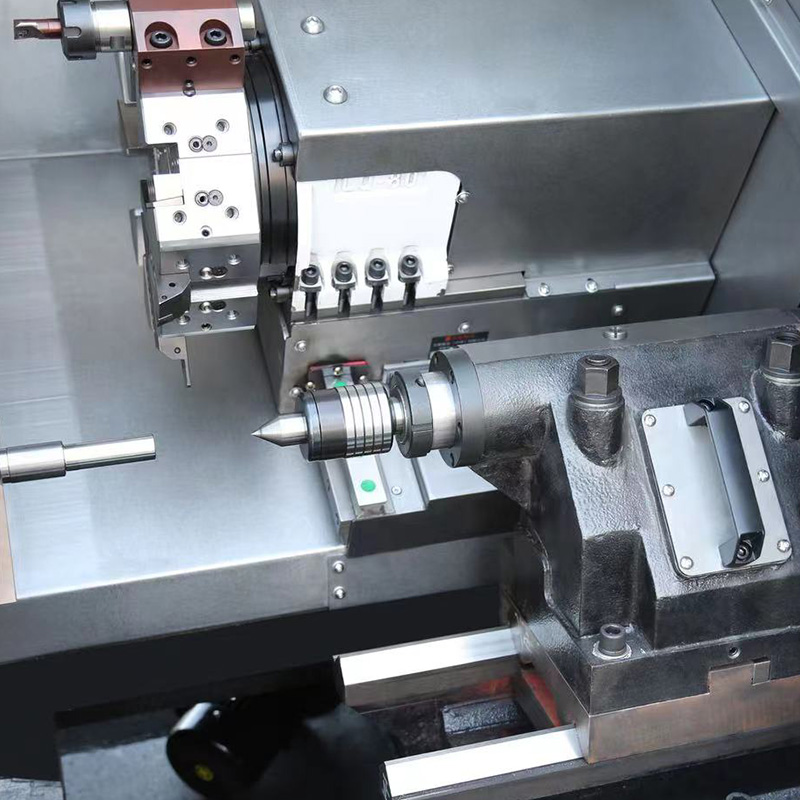

High Quality CNC Polygon Hexagonal Tailstock Lathe Supply

CNC polygon lathes represent a significant advancement in precision machining, offering specialized capabilities to create complex polygonal shapes from metal and other materials. These machines are commonly used in industries where high accuracy and repeatability are paramount, such as automotive manufacturing, aerospace, electronics, and precision engineering. The CNC (Computer Numerical Control) polygon lathe combines automated control systems with traditional turning mechanics to produce multi-sided, non-circular shapes with remarkable precision and speed.

1. Producing Polygonal Shapes with Precision

The primary function of a CNC polygon lathe is to create polygonal shapes, such as hexagons, squares, octagons, and other multi-sided geometries, from a rotating workpiece. Unlike traditional lathes, which are optimized for turning cylindrical or round objects, a CNC polygon lathe is engineered specifically for non-circular machining. This capability is essential for producing parts that require multiple flat surfaces, such as nuts, bolts, couplings, and certain types of fasteners.

The CNC polygon lathe achieves this by using a cutting tool that is aligned at a specific angle to the rotating workpiece. The precise control of the tool allows it to incrementally cut each flat side of the polygonal shape. The cutting action ensures that the final component has the exact dimensions, angles, and finish required, even for parts with complex multi-sided designs.

2. Enhanced Speed and Efficiency in Production

CNC polygon lathes are designed to operate at high speeds, making them ideal for mass production environments. The automation provided by the CNC system significantly reduces cycle times compared to traditional manual machining methods. Since the machine’s movements are precisely controlled by a computer program, the cutting process can be optimized for speed without sacrificing accuracy.

With the ability to rapidly switch between different polygonal shapes, the CNC polygon lathe also supports flexible production schedules. It is capable of producing small and large batches of parts efficiently, making it well-suited for industries that require both custom and standardized components. Furthermore, the high-speed operation of the CNC polygon lathe downtime, improving the overall productivity of the manufacturing process.

3. Precision and Consistency

One of the standout functions of the CNC polygon lathe is its ability to maintain precision and consistency across high volumes of parts. The CNC system ensures that each cycle is identical, producing parts with tight tolerances and accurate dimensional characteristics. This level of consistency is essential in industries where even slight deviations can bring about performance issues or functional failures in end products.

The precision of a CNC polygon lathe is achieved through advanced software algorithms that control the cutting tool's movements. These algorithms allow the machine to make adjustments in real-time, ensuring that the cutting action remains within prescribed parameters, even as the tool wears over time or as variables such as material properties change. As a result, CNC polygon lathes are capable of producing parts that are not only highly accurate but also repeatable, with minimal variation from one unit to the next.

4. Complex Geometry Creation

A significant function of the CNC polygon lathe is its ability to create highly complex polygonal geometries. The versatility of the machine allows it to produce shapes that would be difficult, if not impossible, to achieve with traditional turning or milling machines. CNC polygon lathes can cut both simple and intricate multi-sided shapes with ease, making them invaluable for producing specialized parts in fields like aerospace, automotive, and precision engineering.

The ability to create complex geometries is enabled by the sophisticated control systems of the CNC lathe, which can command the tool to make highly specific, fine adjustments in its positioning. These capabilities allow for the production of parts that have angular features, unique chamfers, or non-circular profiles, meeting the precise specifications required for advanced manufacturing processes.
